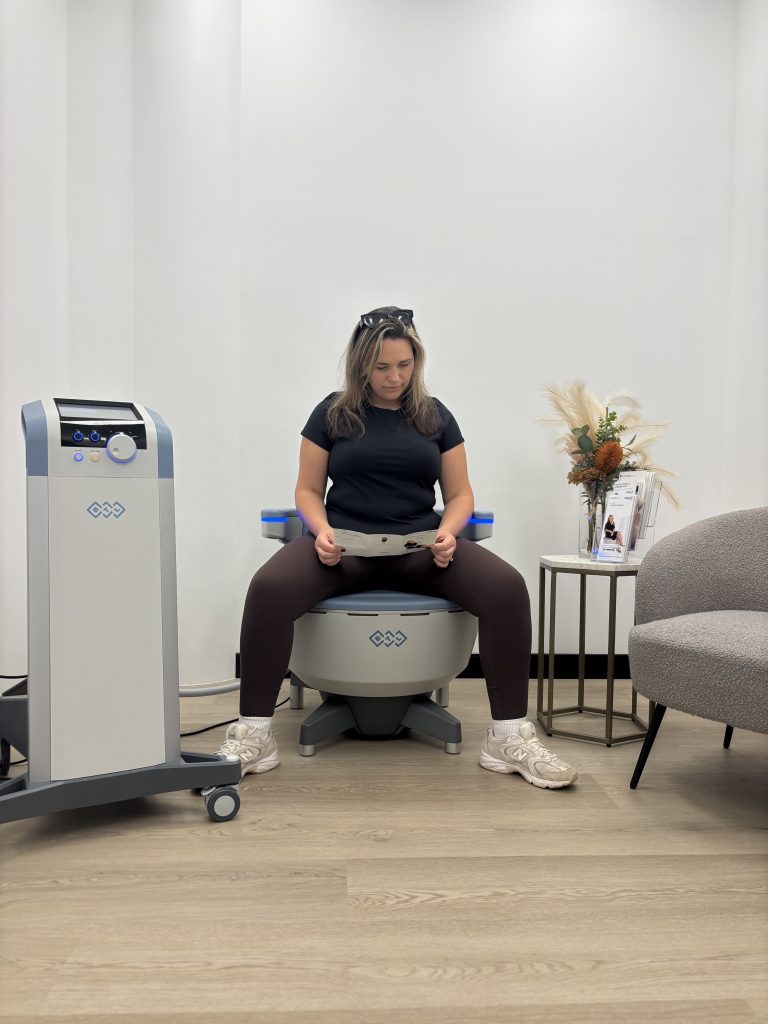

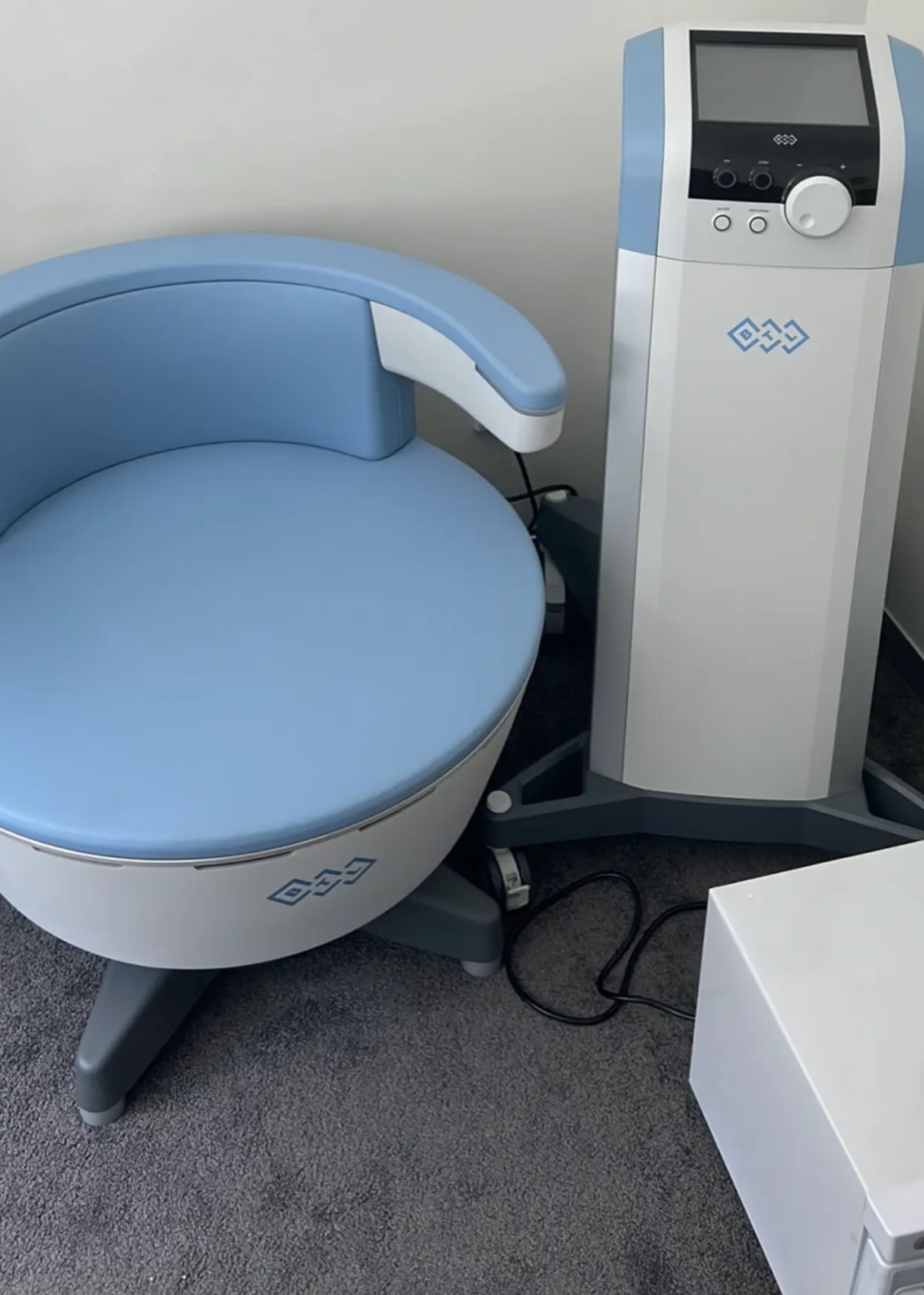

2021 BTL Emsella

EMSELLA uses high-intensity focused electromagnetic energy (HIFEM) to cause deep and intense pelvic-floor muscle contractions, helping your incontinent patients regain their confidence.

HIFEM stimulates the entire pelvic floor area and helps with restoring neuromuscular control.

A single session causes thousands of supramaximal pelvic-floor muscle contractions, which are extremely important in muscle re-education, and improvement of intimate wellbeing.

Primary Function: Muscle stimulation

Type of Energy: Magnetic field

Energy Source: 100 – 240 V AC, 50 – 60 Hz, max 14 A

Number of output channels: 1

Magnetic Field Intensity: 0.7 – 2.5 T

Pulse Repetition Rate: 1 – 150 Hz

Pulse Width: 280 µs (± 20%)

Shape of Stimulation Pulse: Dual phase, rectangular pulses

Therapy Time: Up to 30 min

Interface: Touch-screen

Firmware controlled: Yes

Operating Temperature +10 to +30 °C

Dimensions: 50 x 58 x 97 cm (Dx W x H)

Applicator Dimensions: 73 x 73 x 73 cm (Dx W x H)

Weight: 46 kg
